FHS5080TWQWFCEV
Anti-pollution Vehicle
Download brochure
Production introduction
Technical parameters
 Configurations

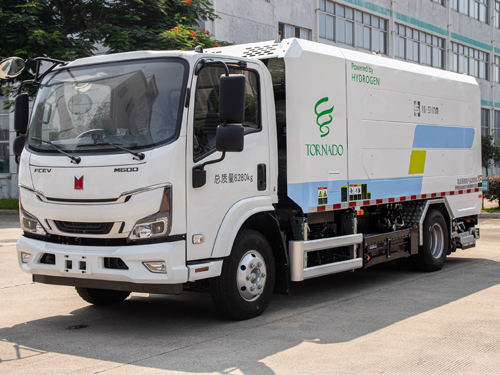

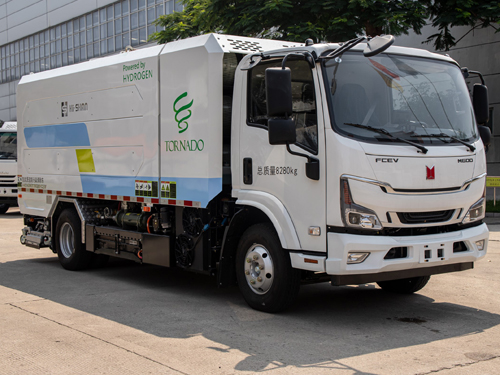

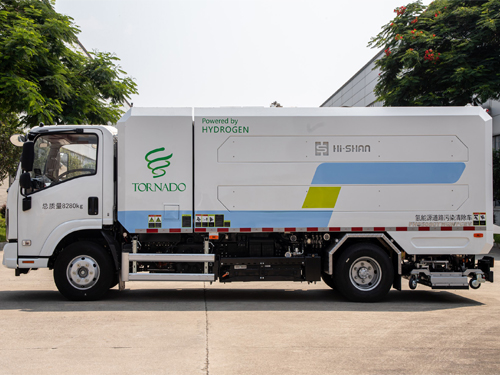

"Haishan Hurricane" FHS5080TWQWFCEV(Hydrogen energy) fuel cell road pollution removal vehicle is driven by hydrogen fuel+battery and has zero emissions. Based on the high efficiency composite turbine and other technologies with dozens of patents of Hasan, the existing equipment can completely solve the problem that the existing equipment can not effectively remove pollutants such as road scale, hardening and oil contamination, and curb road dust from the source. It can be widely used in the deep cleaning of roads, airports, docks, freight yards, power plants, steel mills, mines, squares and other important occasions, as well as the removal of nuclear, biochemical and other toxic substances, It is an indispensable important equipment for sponge cities (functional recovery of permeable and drainage roads), and also an efficient tool for disaster rescue such as floods.

Product advantages:

♦ Adopt hydrogen+power cell fuel type to achieve zero emission;

♦ Cold start capability is lower than - 30 ℃, more suitable for various temperature and climate environments;

♦ 495L super hydrogen capacity, hydrogenation time only takes 5 minutes, fast and worry free;

♦ Dual power system can ensure 50km emergency mileage when hydrogen is exhausted;

♦ Ultra clean vacuum recovery, with outstanding effect on road cleaning, can completely and thoroughly remove road scale, sludge, oil dirt, heavy metals, and no sewage residue and leakage;

♦ With permeability/drainage performance and road function recovery function, the operation effect of the product is far superior to that of similar foreign products;

♦ With powerful functions, a single equipment can replace complete sets of traditional cleaning equipment such as cleaning, washing, flushing and dirt absorption, with high comprehensive economy;

♦ The operation frequency is significantly reduced compared with the traditional combined operation mode, and the effect of single deep pollution removal lasts for 5-15 days;

♦One machine with multiple functions: it has the working modes of deep cleaning, emergency quick cleaning and curb cleaning, and can optionally be equipped with a hand-held cleaner for deep cleaning of sidewalks;

♦ Intelligent and humanized operation: 360 degree video monitoring and intelligent anti-collision system; PM2.5, PM10 automatic real-time pollution detection system;

♦ Meet the requirements for deep cleaning of roads in factories such as iron and steel, coal mines, ports, docks and other industrial sites, and curb road dust from the source.

Parameter item Parameter Value
Overall dimensions (length × wide × High)(mm) 7010×2130×2610
Maximum mass(kg) 8280
Power mode Pure electric
Volume of clean water tank(m3 2.8
Sewage tank volume(m3 2.8
Working pressure of high pressure jet(MPa) 30
Operating speed(km/h) 0-10
Standard working width(mm) 2130
Left and right lateral displacement of high-pressure jet cleaning device(mm) ±200
Chassis brand Isuzu
Chassis specifications 4×2
Battery capacity(kWh) 47.69
Fuel type Hydrogen energy+lithium iron phosphate battery
FHS5080TWQWFCEV
