FHS5250TWQZE6(除冰型)
Anti-pollution Vehicle
Download brochure
Production introduction
Technical parameters
 Configurations

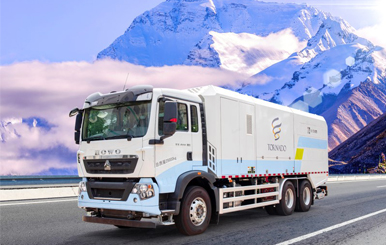

The "Haishan Hurricane" FHS5250TWQZE6 (deicing type) road pollution removal vehicle, based on the efficient composite turbine and other technologies of dozens of Haishan patents, completely solves the problem that the existing equipment cannot effectively remove pollutants such as road scale, hardening, oil pollution, etc., curbs road dust from the source, and realizes sitting on the ground. It can be widely used in the deep cleaning of roads, airports, wharves, freight yards, power plants, steel mills, mines, squares and other important occasions, as well as the removal of nuclear, biochemical and other toxic substances. It is an indispensable important equipment for sponge cities (functional recovery of permeable and drainage roads), and also an efficient tool for disaster rescue such as floods.



Product advantages:

♦ Ultra clean vacuum recovery, with outstanding effect on road cleaning, can completely and thoroughly remove road scale, sludge, oil dirt, heavy metals, and there is no sewage residue and leakage;

♦Hydrostatic traveling drive, with automatic cruise function; Equipped with a water broom, which can clean the curb;

♦ The single engine design is adopted, and the whole vehicle has national six emission, with outstanding environmental protection performance;

♦ With permeable/drainage road function recovery function, the operation effect of the product is far superior to that of similar foreign products;

♦ With powerful functions, a single equipment can replace complete sets of traditional cleaning equipment such as cleaning, washing, flushing and dirt absorption, with high comprehensive economy;

♦ The frequency of operation is significantly reduced compared with the traditional combined operation mode, and the retention time of single deep pollution removal effect can reach 5-15 days;

♦ Meet the requirements for deep cleaning of roads in factories such as iron and steel, coal mines, ports, docks and other industrial sites, and curb road dust from the source;

♦ One machine with multiple functions: with deep cleaning and emergency quick cleaning working mode; The tail can be equipped with boom suction device, which can be connected with suction hose for fast suction of sand, soil, water and other materials; Optional hand-held washer for deep cleaning of sidewalks;

♦ Intelligent and humanized operation: 360 ° video monitoring and intelligent anti-collision system; PM2.5, PM10 automatic real-time pollution monitoring system.

  20210911092642
Parameter item Parameter value
Overall dimensions (length × wide × High)(mm) 10145/10425×2500×3450
Maximum mass(kg) 25000
Volume of clean water tank(m3 8
Storage bin volume(m3 9.5
Working pressure of high pressure jet(MPa) 30
Operating speed(km/h) 0-10
Standard working width(mm) 2500
Left and right lateral displacement of high-pressure jet cleaning device(mm) ±300
Operation mode De icing mode/deep contamination removal/quick cleaning
Deicing thickness(mm) ≤10
Operating ambient temperature(C) -35~40
Chassis brand China heavy truck
Chassis specifications 6×4
Engine power(kW) 297
emission standard National VI
3_1 3_2 3_3
